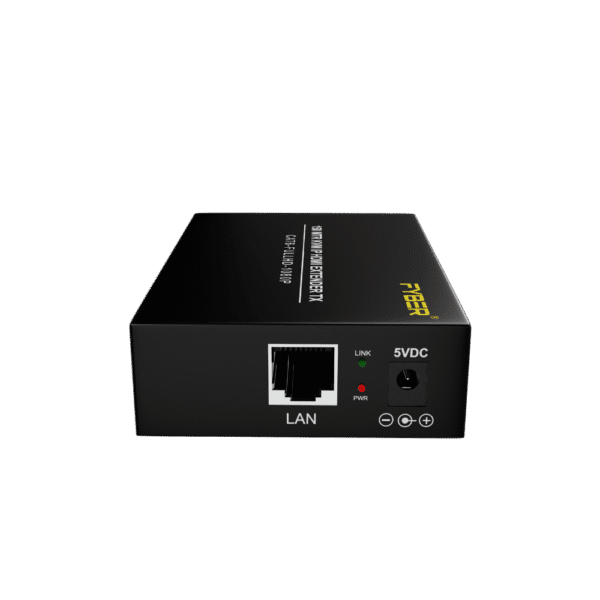

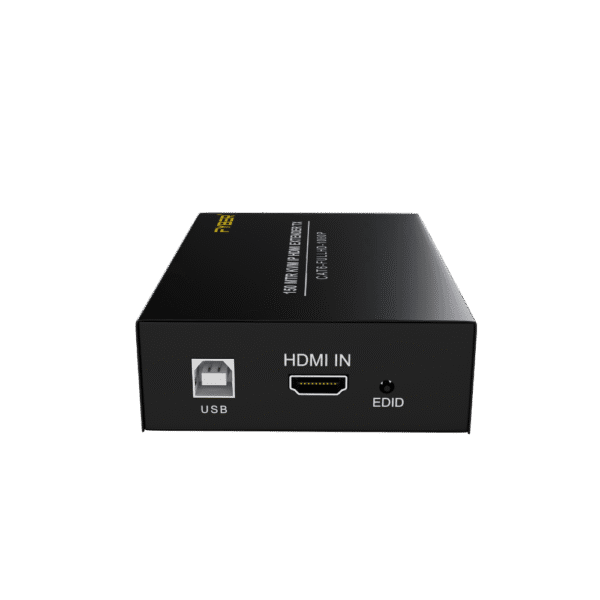

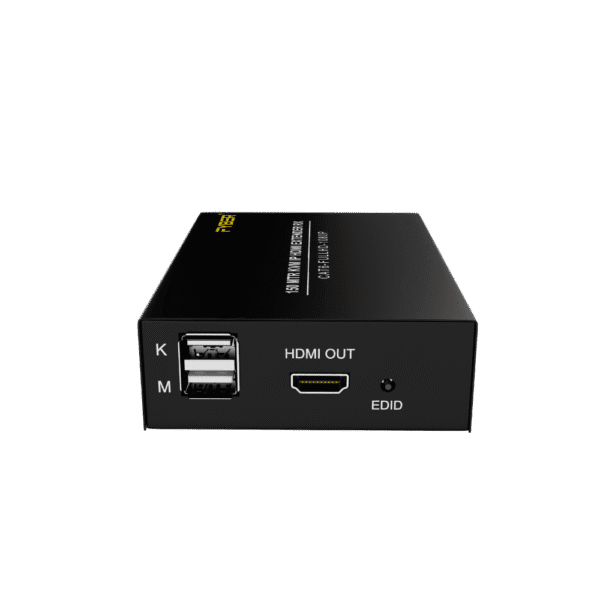

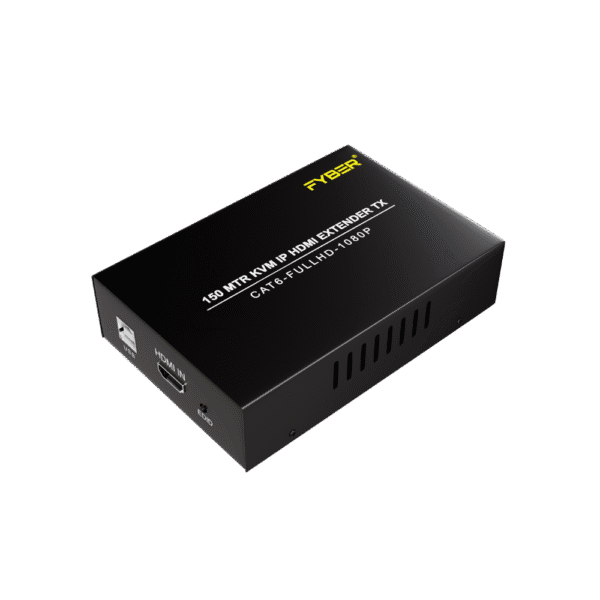

FY-HE150M is a HDMI extender which adopts new HDMI extending technology. The product consists of a transmitter unit and a receiver unit and should be used in pairs. With the application of this HDMI extender, HDMI signal with KVM control could be extended up to 150m over single cost-effective Cat5e/6 or above cable at higher standard. The HDMI 150m extender is a complete solution to solve the image mosaic, color distortion, transmission failure and other problems when long distance HDMI signal is transmitted. It supports EQ setting-automatically to search the best transmitting resolution HDMI signals, and supports infra-red pass-back function, etc.
Features
| Version | HDMI1.3 HDCP1.2 |
| Resolution | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@60Hz |
| Power Supply | DC12V/1A |
| USB port | USB2.0 keyboard, mouse, compatible with USB1.1 |
| Humidity | 95% |
| Max Transmission | Max Transmission distance max up to 150m over Cat5e/6 or above |
| ESD Protection | Electronics Touch Discharge: ±2KV Air Discharge: ±4KV Standard: IEC61000-4-2 |
| Power Consumption | TX: 0W RX: < 2.0W |
| Operating Temperature | 0°C ~ 60°C |
