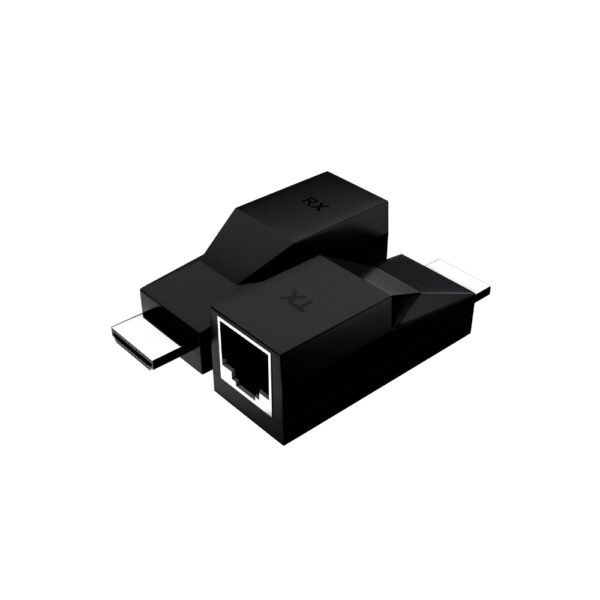

FY-HEP30M is a Passive HDMI extender which adopts new HDMI extending technology. The product consists of a transmitter unit and a receiver unit and should be used in pairs. With the application of this HDMI extender, HDMI signal could be extended up to 30m over single cost-effective Cat5e/Cat6 or above at higher standard. The HDMI 30m extender is also a complete solution to solve the image mosaic, color distortion, transmission failure and other problems when long distance HDMI signal is transmitted.
Features
| Version | HDMI1.3 HDCP1.2 |
| Resolution | 720p@50/60Hz, 1080i@50/60Hz, 1080p@60Hz |
| Max Transmission | Max Transmission distance max up to 30m over Cat5e / Cat6 or above pure copper cable |
| ESD Protection | Electronics Touch Discharge: +2kV Air Discharge: +4kV Standard: IEC61000-4-2 |
| Operating Temperature | 0°C ~ 60°C |
| Humidity | 95% |
