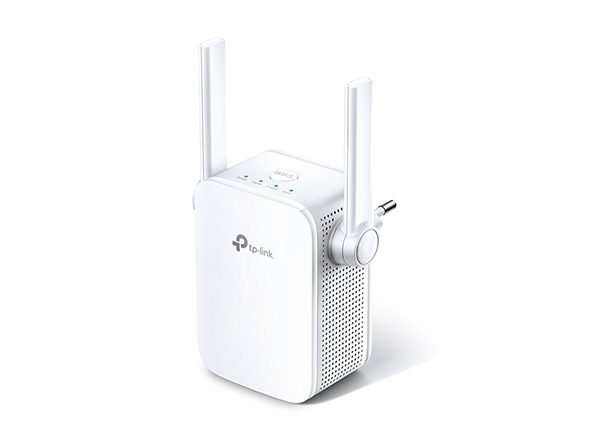

RE305
RE305 - Image 2
RE305 - Image 3
RE305 - Image 4
RE305 - Image 5

  • Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2Gbps
  • Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience

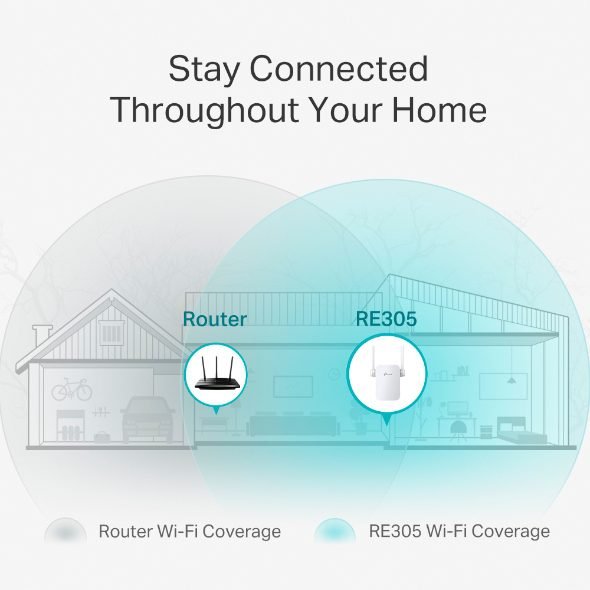

  • Creates a Mesh network by connecting to a TP-Link OneMesh™ router for seamless whole-home coverage.
  • Intelligent signal light helps to fi­nd the best location for optimal Wi-Fi coverage by showing the signal strength
  • Works with any Wi-Fi router or wireless access point
  • EasyMesh-Compatible – Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
Category:

Description

Specifications

WIRELESS
Working ModesRange Extender / Access Point
HARDWARE FEATURES
Standards & ProtocolsIEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Plug TypeEU, UK, US
Interface1× 10/100Mbps Ethernet Port (RJ45)
ButtonWPS Button, Reset Button
Input Power100-240V~50/60Hz
Max Power Consumption7.3W
Dimensions80 × 78 × 77 mm
Antenna2 External Antennas
WIRELESS FEATURES
Wireless StandardsIEEE 802.11ac 5GHz
IEEE 802.11n/g/b 2.4GHz
Frequency2.4GHz & 5GHz
Signal Rate867 Mbps (5GHz)
300 Mbps (2.4GHz)
Wireless FunctionsRange Extender / Access Point
Wireless Statistics
Concurrent Mode (Dual Band Boost)
Access Control
LED Control
Domain Login
Wireless Security64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power<17 dBm (2.4GHz)
<17 dBm (5GHz)
Mesh TechnologyEasyMesh Compatible
OTHER
Network ServicesWeb Server (HTTP/HTTPS)
DHCP Server
App Management
CertificationCE, FCC, RoHS
Package ContentAC1200 Wi-Fi Range Extender RE305
Quick Installation Guide
System RequirementsWindows, Mac OS, Linux
EnvironmentOperating Temp: 0°C~40°C
Storage Temp: -40°C~70°C
Humidity: 10%~90%
