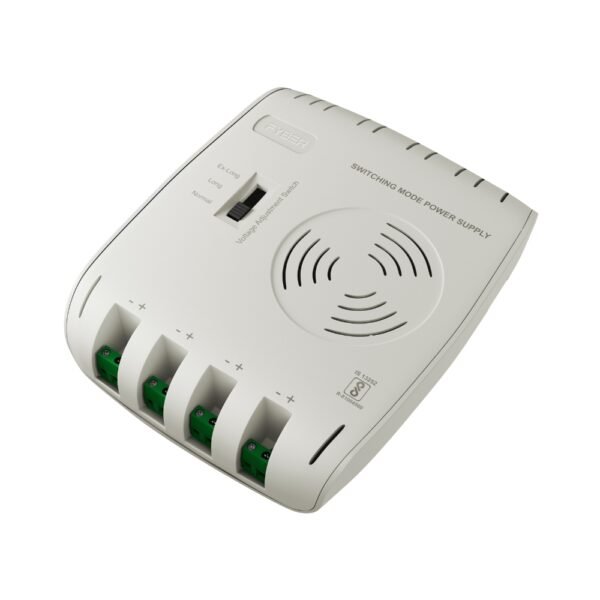

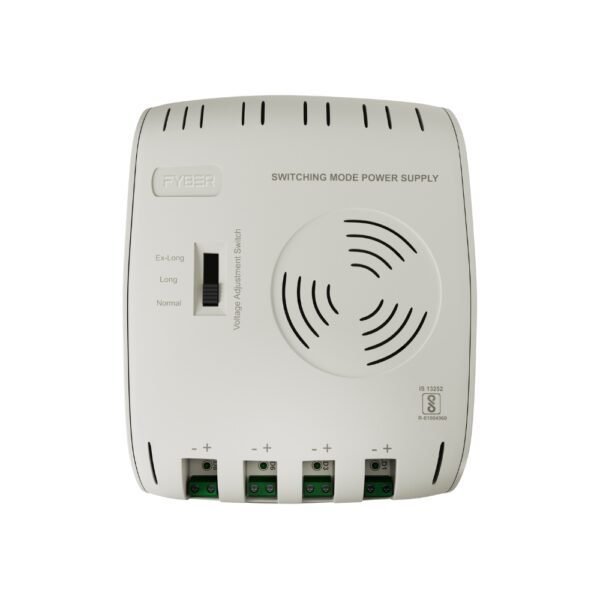

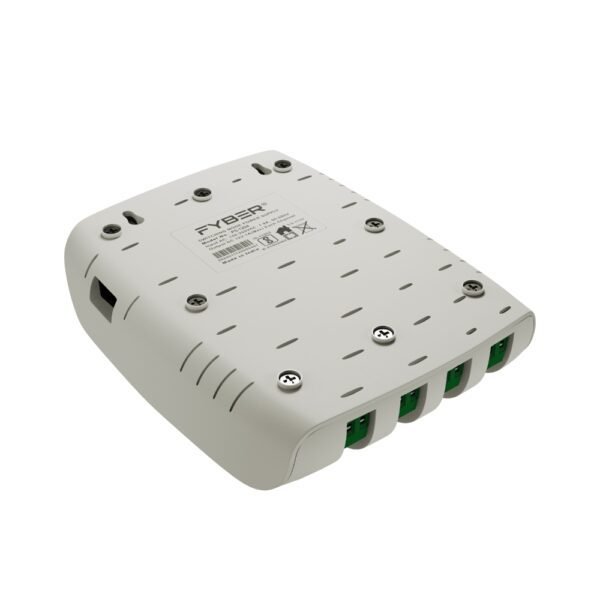

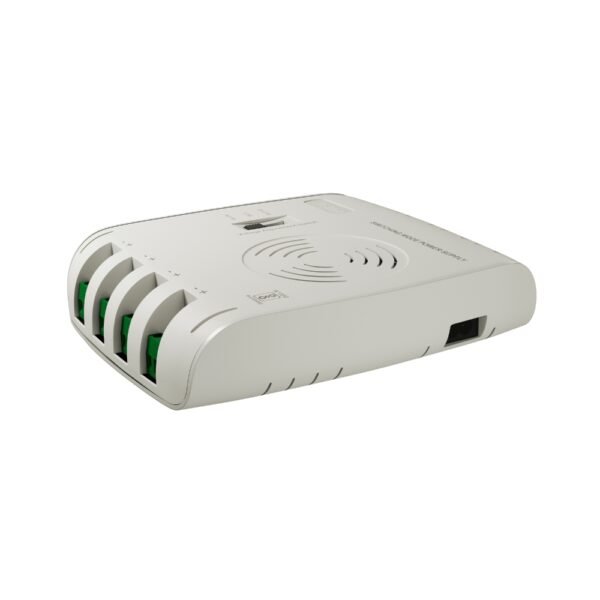

PS-1204 (CCTV Power Supply) Comes with Individual output and resettable fuse. It ensures safe installation and delivers 1A current (Max) via each port.

  1. 4 Channel Individual Output with resettable fuse.
  2. Voltage Adjustment Switch
  3. Led indicator for each channel shows the functional status.
  4. Made from High grade ABS plastic
  5. Overload, Overvoltage, Over Current, Short Circuit, and Over Temperature Protection.
  6. Unique and attractive with Ventilation for heat dissipation.
  7. BIS Certified.
  8. With AC Input Cable.
SKU: 007 Categories: ,

Description

FeatureSpecification
AC Input Voltage150~265VAC
DC Output voltage12VDC
Rated Power120W
Ripple & Noise (max.)140mV (max)
Voltage Adj. RangeNA
DevicePrimary-Side Regulation
Device (frequency)132KHz
VDS Voltage616V (max)
Line Regulations±1%
Load Regulations±5%
SCPOutput short-circuit protection
OPP, OCPOutput overload/over-current protection
OVPOutput overvoltage protection, auto-restart or latching
Line UVLine brown-in/out protection
OVLine overvoltage shutdown extends line surge withstand
OTPAccurate thermal shutdown, hysteretic or latching
Efficiency (Typ.)83%
Frequency Range47~63HZ
Storage Temperature0~50°C
