Description
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards & Protocols | IEEE 802.3i / 802.3u / 802.3ab / 802.3x |

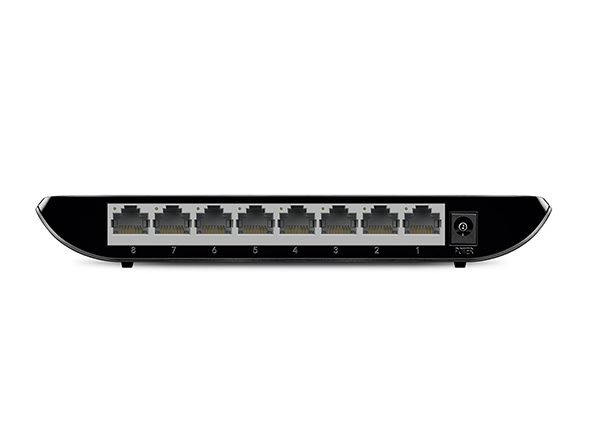

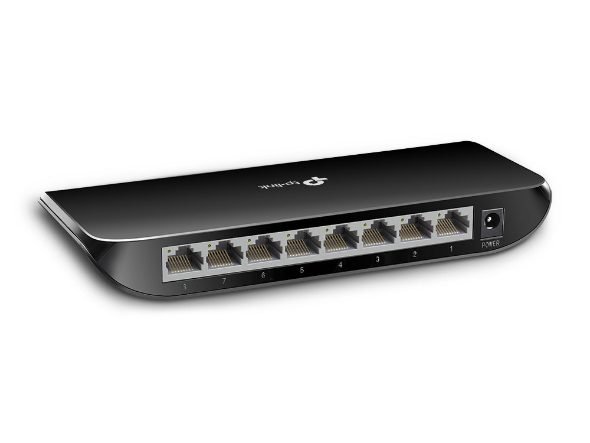

| Interface | 8× 10/100/1000 Mbps RJ45 Ports Auto Negotiation / Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
| Jumbo Frame | 15 KB |
| Switching Capacity | 16 Gbps |
| Dimensions | 180 × 90 × 25.5 mm |
| Max Power Consumption | 4.63W (220V/50Hz) |
| Max Heat Dissipation | 15.8 BTU/h |
| SOFTWARE FEATURES | |
| Advanced Features | Green Technology 802.3x Flow Control Back Pressure 802.1p/DSCP QoS (V7 and later) |
| MAC Address Table | 4K |
| Transmission Method | Store-and-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | 8-Port Gigabit Desktop Switch Power Adapter Installation Guide |
| Environment | Operating Temp: 0°C ~ 40°C Storage Temp: -40°C ~ 70°C Operating Humidity: 10%~90% (non-condensing) Storage Humidity: 5%~90% (non-condensing) |
