Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 × Gigabit Ethernet (RJ-45) Port |
| Button | Reset |
| Power Supply | • 802.3af PoE • 48V Passive PoE • 12V/1.5A DC (Power Adapter Included) |
| Max Power Consumption | • EU: 13.7W (PoE), 12.3W (DC) • US: 14.2W (PoE), 12.8W (DC) |
| Dimensions (W × D × H) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna | Internal Omni Antenna • 2.4 GHz: 2 × 4 dBi • 5 GHz: 2 × 5 dBi |

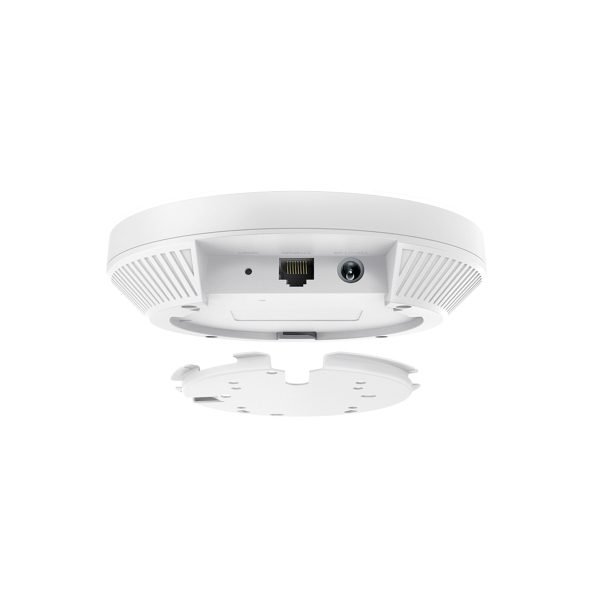

| Mounting | • Ceiling/Wall Mounting (kits included) • Junction Box Mounting |
| WIRELESS FEATURES | |
| Coverage | 115 m² (1250 ft²) |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 1024-QAM • Long OFDM Symbol • Multiple SSIDs (up to 16 SSIDs) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control • QoS (WMM) • MU-MIMO • Seamless Roaming • Omada Mesh • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation • SSID to VLAN Mapping • Rogue AP Detection • WPA/WPA2/WPA3 Support |
| Transmission Power | • CE: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz) • FCC: ≤25 dBm (2.4 GHz), ≤25 dBm (5 GHz) |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300/OC200) • Omada Software Controller |
| Cloud Access | Yes (via OC300/OC200/Cloud Controller) |
| Management Features | • Web-based Management (HTTP/HTTPS) • L3 Management • Multi-site Management • Management VLAN • Zero-Touch Provisioning |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | • EAP610 • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7/8/10/11, Linux |
| Environment | • Operating Temperature: 0~40°C (32~104°F) • Storage Temperature: -40~70°C (-40~158°F) • Operating Humidity: 10~90% RH non-condensing • Storage Humidity: 5~90% RH non-condensing |
