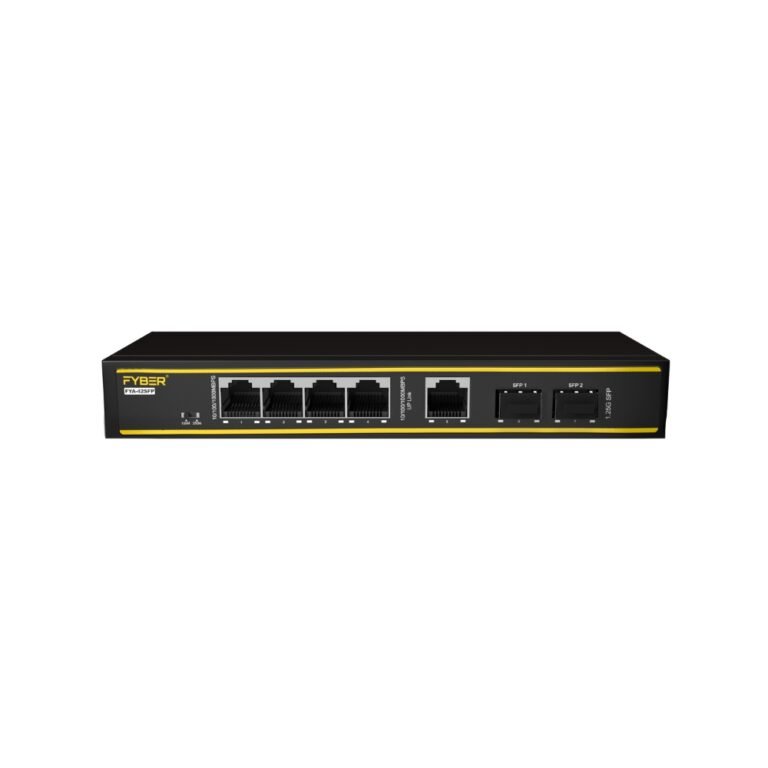

FYA-42SFP – 4 Port PoE Switch

FYA-42SFP provides 4-port 10/100/1000Mbps IEEE 802.3af/at Power over Ethernet with a total of 78 watts of PoE budget, which is an ideal solution to fulfill the demand of sufficient PoE power for network applications. It is able to drive 4 IEEE 802.3af/at compliant powered devices. FYA-42SFP is an ideal solution for securing IP surveillance infrastructure and can provide 15.4/30Watts Power to PoE Devices. This PoE uses a standard PSE Chipset solution ensuring greater reliability.

Features

  • 4×10/100/1000 +1×10/100/1000Base Uplink + 2x1000Base-X uplink ports
  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af/at standards
  • Support IEEE802.3X full-duplex flow control; support Auto MDI/MDIX
  • Plug and play, no need to configure
  • Support two operating modes extend with VLAN isolated, default configuration
  • Support 4KV surge protection, 6KV ESD protection
  • Galvanized housing for stable and durable working life
Category:

Description

Technical Specifications

FeatureSpecification
Power SupplyPower Adaptor, 52V/2.3A
PoE Port8×10/100/1000 Mbps
Uplink Port2×10/100/1000Mbps & 2×1000Base-X
Network StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3X
PoE StandardIEEE802.3af/at
Backplane Bandwidth24Gbps
Forwarding Capacity17.856Mpps
Packet Buffer2M
MAC Address List2K
Forward ModeStore-and-forward
Mode SwitchDefault: All ports can communicate freely, link speed is 10/100/1000Mbps

VLAN: Ports 1–8 are isolated respectively, but can communicate with Ports 9–12

PoE Power ModeEnd-span 1/2 (+), 3/6 (-)
PoE Power BudgetEach port ≤30W, Whole device 60W
ProtectionSurge Protection: 4KV (common mode), 10/700us IEC61000-4-5

ESD Protection: Contact Discharge ±4KV

Air Discharge: ±6KV (IEC61000-8-2)

Operating Temperature-20~55°C, 5%~95% (non-condensing)
Storage Temperature-40~75°C, 5%~95% (non-condensing)
Mean Time Between Failures (MTBF)>50000h
