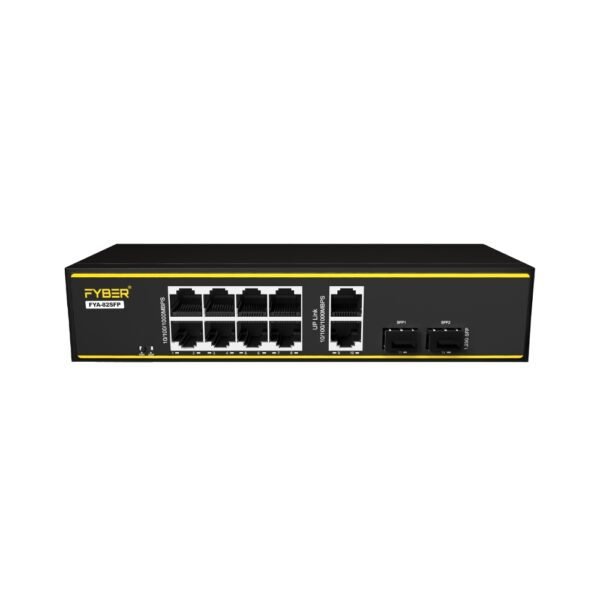

FYA-82SFP – 8 Port PoE Switch

FYA-82SFP provides 8-port 10/100/1000Mbps IEEE 802.3af/at Power over Ethernet with a total of 120 watts of PoE budget, which is an ideal solution to fulfill the demand of sufficient PoE power for network applications. It is able to drive 8 IEEE 802.3af/at compliant powered devices.FYA-82SFP is an ideal solution for securing IP surveillance infrastructure. It provides both 802.3af/at PoE functions along with 8x 10/100/1000Base-TX ports featuring 15.8-watt 802.3af/30-watt 802.3at PoE in RJ-45 interfaces and extra 2x 10/100/1000Mbps RJ-45 ports and 2x1000Base-X UPLINK SFP port to keep a cascade connection with another switch or NVR. This PoE uses Industrial standard PSE chipset solution, thereby increasing its reliability. Also the PoE can provide 15.4/30W Power to PoE powered device.

Features

  • 8×10/100/1000Base-TX PoE ports and 2×10/100/1000Base-TX and
  • 2x1000Base-X uplink ports
  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab,IEEE802.3af/at
  • standards
  • Support IEEE802.3X full-duplex flow control;support Auto MDI/MDIX
  • Up to 120W PoE power budget
  • 52VDC/2.3A power adapter
  • Plug and play, no need to configure
  • Support two operating modes extend with VLAN isolated, default
  • configuration
  • Support 4KV surge protection, 6KV ESD protection
  • Galvanized housing for stable and durable working life
Category:

Description

Technical Specifications

Power SupplyPower Adaptor, 52V/2.3A
PoE Port8×10/100/1000 Mbps
Uplink Port2×10/100/1000Mbps & 2×1000Base-X
Network StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3X
PoE StandardIEEE802.3af/at
Backplane Bandwidth24Gbps
Forwarding Capacity17.856Mpps
Packet Buffer2M
MAC Address List2K
Forward ModeStore-and-forward
Mode SwitchDefault: All port can be communicated freely, link speed is 10/100/1000Mbps

VLAN: Port 1-8 are isolated respectively, but can communicate with Port 9-12

PoE Power ModeEnd-span 1/2 (+), 3/6 (-)
PoE Power BudgetEach port ≤30W Whole devices 60W
ProtectionSurge Protection: 4KV (common mode), 10/700us IEC61000-4-5

ESD Protection: Contact Discharge: ±4KV

Air Discharge: ±6KV Standard: IEC61000-8-2

Operating Temperature-20~55℃ 5%~95% (non-condensing)
Storage Temperature-40~75℃ 5%~95% (non-condensing)
Mean time between failures (MTBF)>50000h
