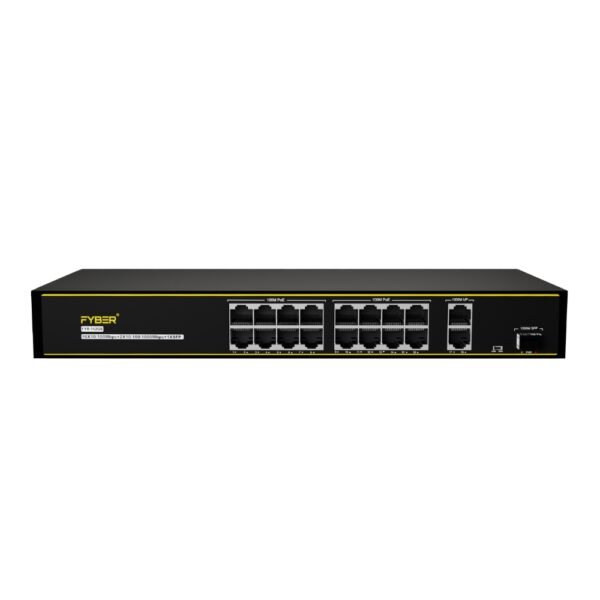

16(10/100)+2(10/100/1000) PoE Switch

The 16 Port PoE Switch(FYR-162GE ) provides 16-port (10/100) Mbps IEEE 802.3af/at Power over Ethernet with a total of 250 watts of PoE budget, which is an ideal solution to fulfill the demand of sufficient PoE power for network applications. It is able to drive 16 IEEE 802.3af/at compliant powered devices. It has 2 Uplink Port(10/100/1000).

  • 16×10/100Base-TX PoE ports and 2×10/100/1000 Base-TX uplink ports
  • Comply with IEEE802.3, IEEE802.3u, 3ab, IEEE802.3af/at standards
  • Build in 250W power supply.
  • Support desktop and wall mount installation
  • Plug and play, no need to configure
  • Support two operating modes extend with VLAN isolated,, default configuration
  • Support 6KV surge protection, 8KV ESD protection
Category:

Description

Technical Specifications

FeatureSpecifications
Power SupplyPower Adaptor, 52V/4.80A
PoE Port16×10/100 Mbps
Uplink Port2×10/100/1000 Mbps
Network StandardIEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab
PoE StandardIEEE802.3af/at
Backplane Bandwidth5.6Gbps
Forwarding Capacity5.35Mpps
Packet Buffer4M
MAC Address List16K
Forward ModeStore-and-forward
Mode SwitchDefault: All port can be communicated freely

Extend: Port 1-16 Speed 10Mbps, Maximum transmission distance up to 250 meters, Port 1-16 are isolated respectively, but can communicate with Port 17-18

PoE Power ModeEnd-span 1/2 (+), 3/6 (-)
PoE Power BudgetEach port ≤30W, Whole devices 200W
ProtectionSurge Protection: 6KV (common mode), 10/700us IEC61000-4-5

ESD Protection: Contact Discharge ±6KV

Air Discharge: ±8KV Standard: IEC61000-4-2

Operating Temperature-20~55°C 5%~95% (non-condensing)
Storage Temperature-40~75°C 5%~95% (non-condensing)
Dimensions (L*W*H)280mm×200mm×44mm
Weight2.0kg
Mean time between failures (MTBF)>50000h
CertificationCE, FCC, BIS, ROHS
