8(10/100)+2(10/100/1000) PoE Switch

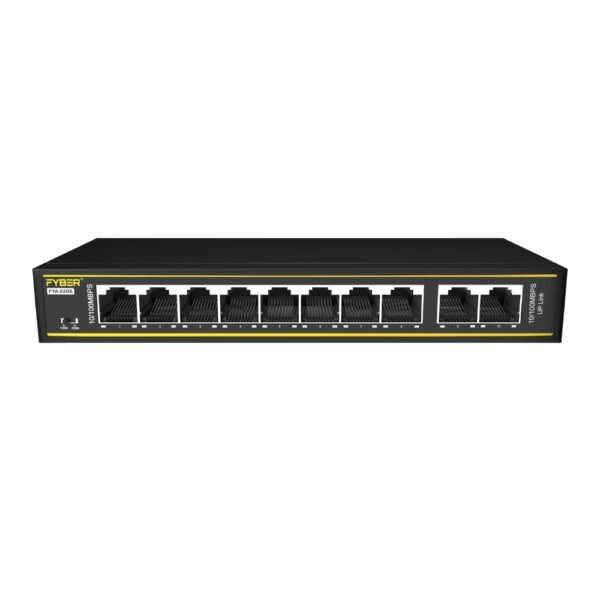

The 8 Port PoE Switch(FYR-82GE ) provides 8-port 10/100Mbps IEEE 802.3af/at Power over Ethernet with a total of 130 watts of PoE budget, which is an ideal solution to fulfill the demand of sufficient PoE power for network applications. It is able to drive 8 IEEE 802.3af/at compliant powered devices. It has 2 Uplink Port(10/100/1000).

  • 8×10/100Base-TX PoE ports and 2×10/100/1000 Base-TX uplink ports
  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards
  • Internal 52VDC/2.5A power adapter
  • Support desktop and wall mount installation
  • Plug and play, no need to configure
  • Support two operating modes extend with VLAN isolated, default configuration
  • Support 4KV surge protection, 6KV ESD protection
Category:

Description

Technical Specifications

FeatureSpecifications
Power SupplyPower Adaptor, 52V/2.5A
PoE Port8×10/100 Mbps
Uplink Port2×10/100/1000 Mbps
Network StandardIEEE802.3, IEEE802.3u, IEEE802.3X
PoE StandardIEEE802.3af/at
Backplane Bandwidth5.6Gbps
Forwarding Capacity4.16Mpps
Packet Buffer1792K
MAC Address List4K
Forward ModeStore-and-forward
Mode SwitchDefault: All port can be communicated freely

Extend: Port 1-8 Speed 10Mbps, Maximum transmission distance up to 250 meters, Port 1-8 are isolated respectively, but can communicate with Port 9-10

PoE Power ModeEnd-span 1/2 (+), 3/6 (-)
PoE Power BudgetEach port ≤30W, Whole devices 130W
ProtectionSurge Protection: 4KV (common mode), 10/700us IEC61000-4-5

ESD Protection: Contact Discharge ±4KV

Air Discharge: ±6KV Standard: IEC61000-4-2

Operating Temperature-20~55°C 5%~95% (non-condensing)
Storage Temperature-40~75°C 5%~95% (non-condensing)
Dimensions (L*W*H)220mm×100mm×26mm
Weight650g
Mean time between failures (MTBF)>50000h
CertificationCE, FCC, BIS, ROHS
