Omada Hardware Controller

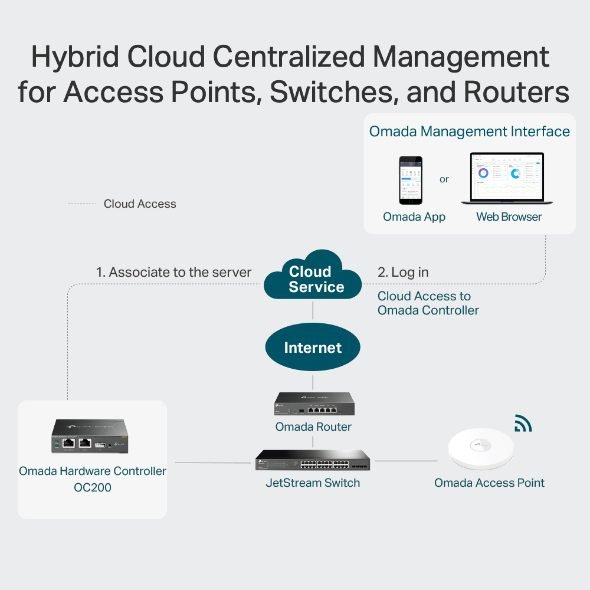

  • Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.
  • Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
  • On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.
  • Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
  • Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
  • Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
  • Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
  • Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.
Category:

Description

HARDWARE FEATURES

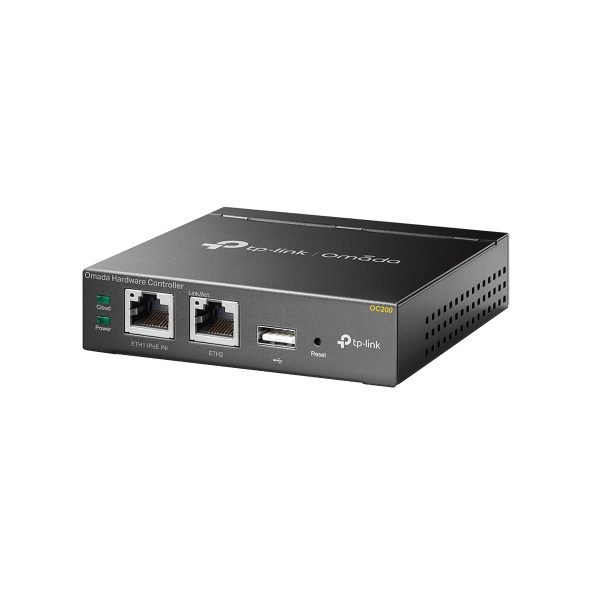

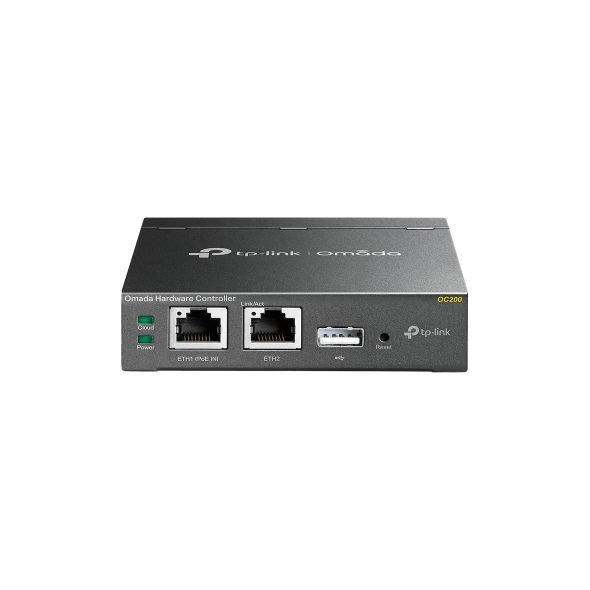

Interface• 2 × 10/100 Mbps Ethernet Port
• 1 × USB 2.0 Port

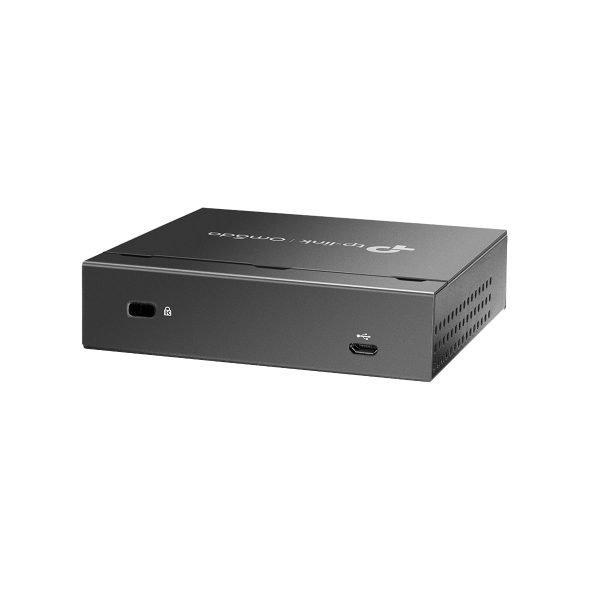

• 1 × Micro USB Port
Power Supply802.3af/at PoE or Micro USB (DC 5V/Minimum 1A)
Dimensions (W × D × H)3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
MANAGEMENT FEATURES
Omada AppYes
Centralized Management• Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
• Up to 1,000 Clients

Note: Please refer to official TP-Link website for supported device models.

Cloud AccessYes
L3 ManagementYes
Multi-site ManagementYes
Management Features• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
CertificationCE, FCC, RoHS
Package Content• Omada Hardware Controller OC200
• Quick Installation Guide
• Ethernet Cable
System RequirementsMicrosoft Windows 10, 8, 7, Vista, XP or MAC OS, NetWare, UNIX or Linux
Environment• Operating Temperature: 0~40°C (32~104°F)
• Storage Temperature: -40~70°C (-40~158°F)
• Operating Humidity: 10~90% RH non-condensing
• Storage Humidity: 5~90% RH non-condensing
