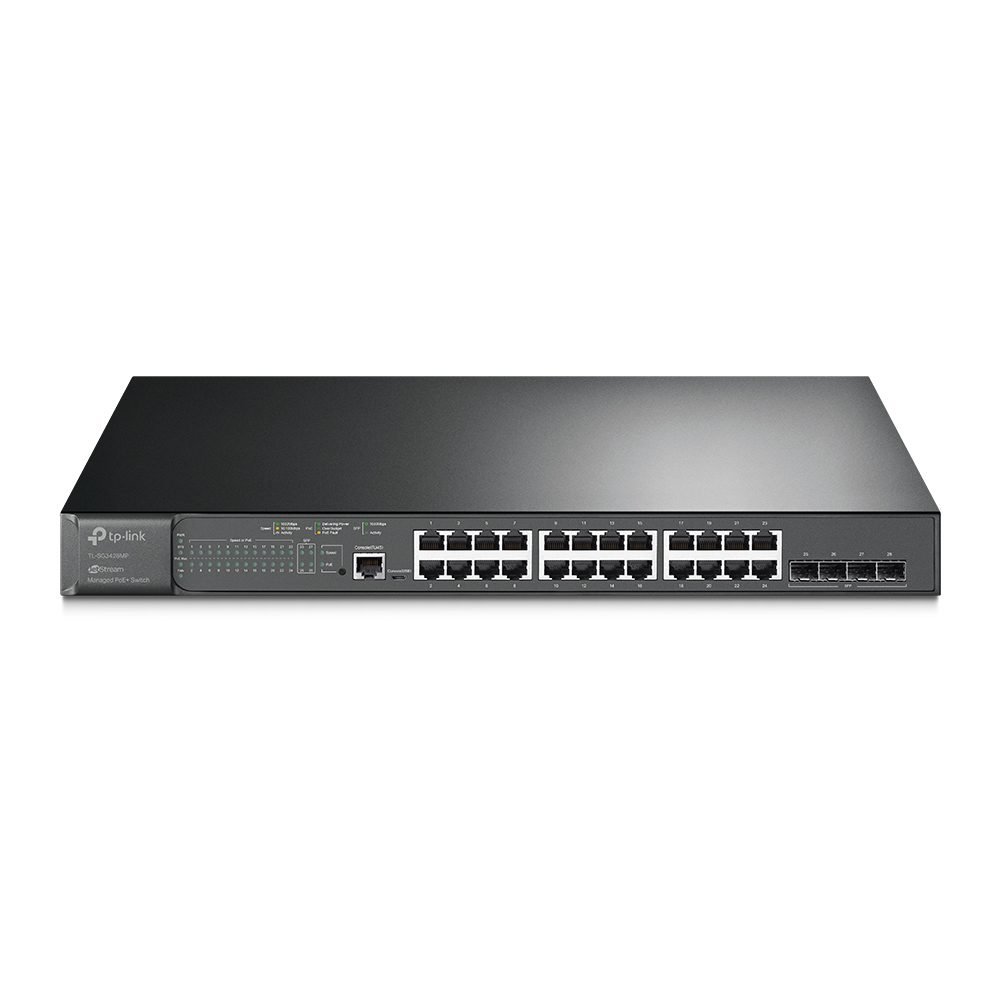

TL-SG3428
TL-SG3428 - Image 2
TL-SG3428 - Image 3
TL-SG3428 - Image 4
TL-SG3428 - Image 5
TL-SG3428 - Image 6

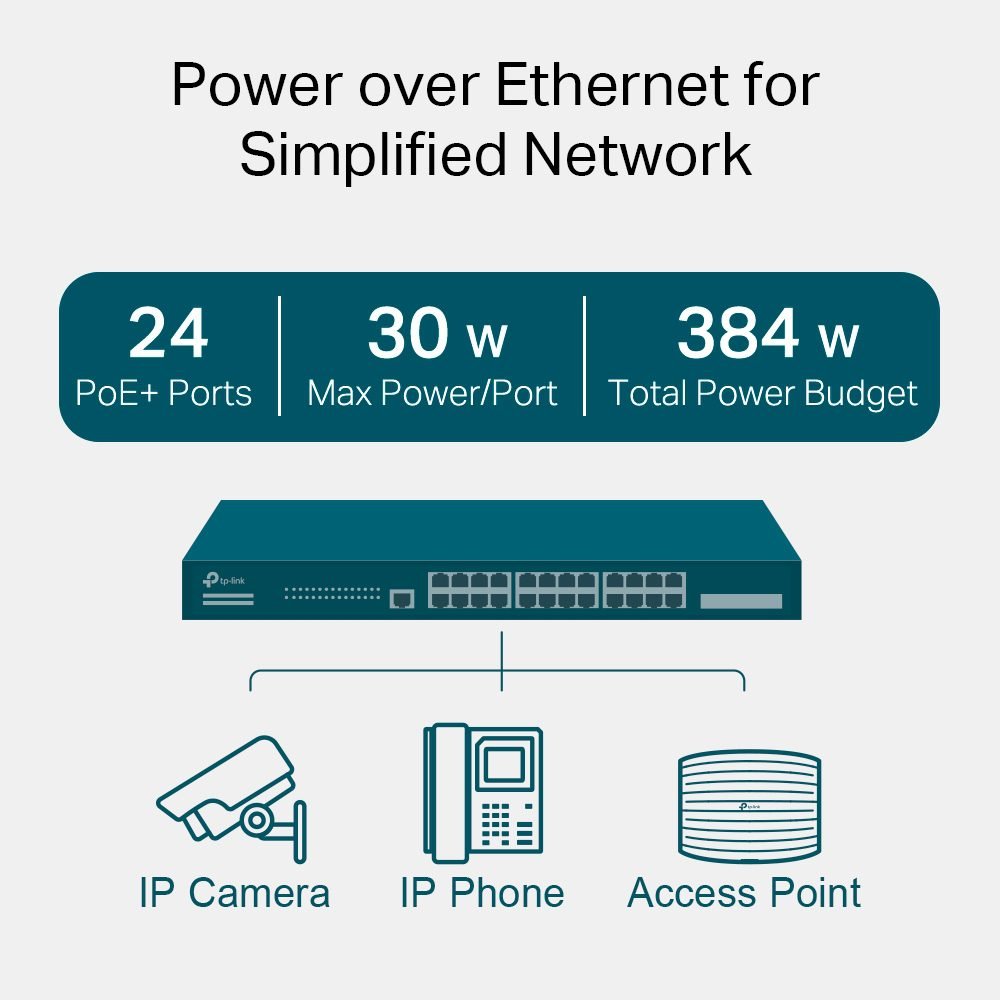

  • 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
  • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.

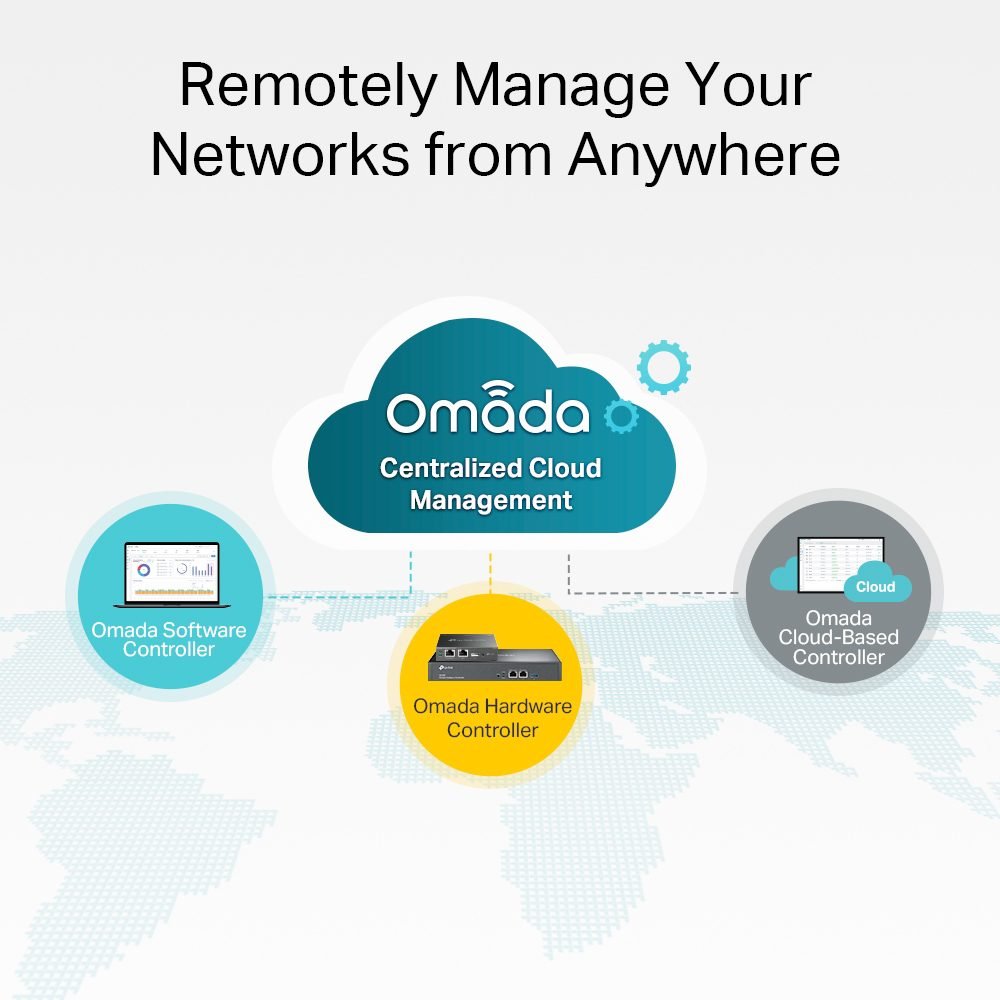

  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)***, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Category:

Description

Specifications

GENERAL
ModelTL-SG3428MP
TypeJetStream 24-Port Gigabit L2+ Managed PoE Switch
HARDWARE FEATURES

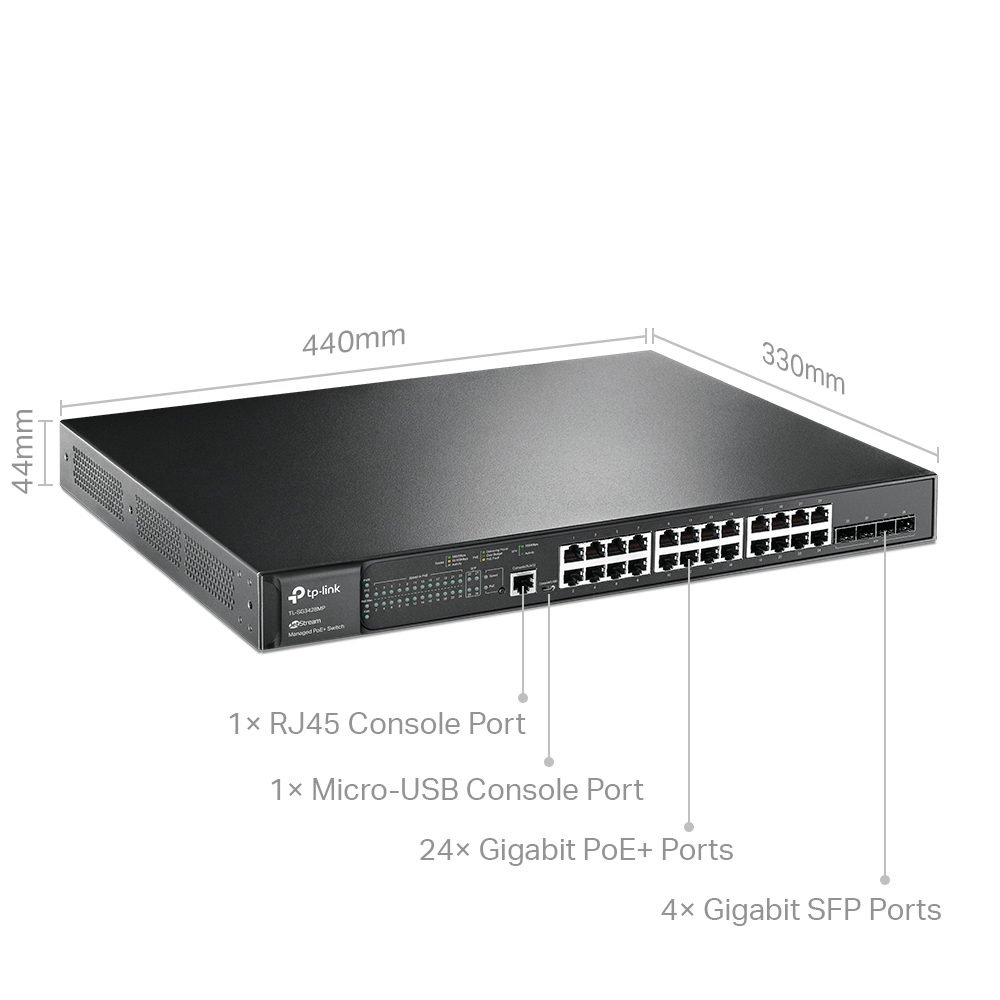

Ports• 24× 10/100/1000 Mbps RJ45 PoE+ Ports
• 4× Gigabit SFP Slots
PoE StandardIEEE 802.3af/at
PoE Budget384 W
Switching Capacity56 Gbps
Packet Forwarding Rate41.7 Mpps
MAC Address Table16K
Packet Buffer Memory12 Mb
Jumbo Frame9 KB
Rack MountYes

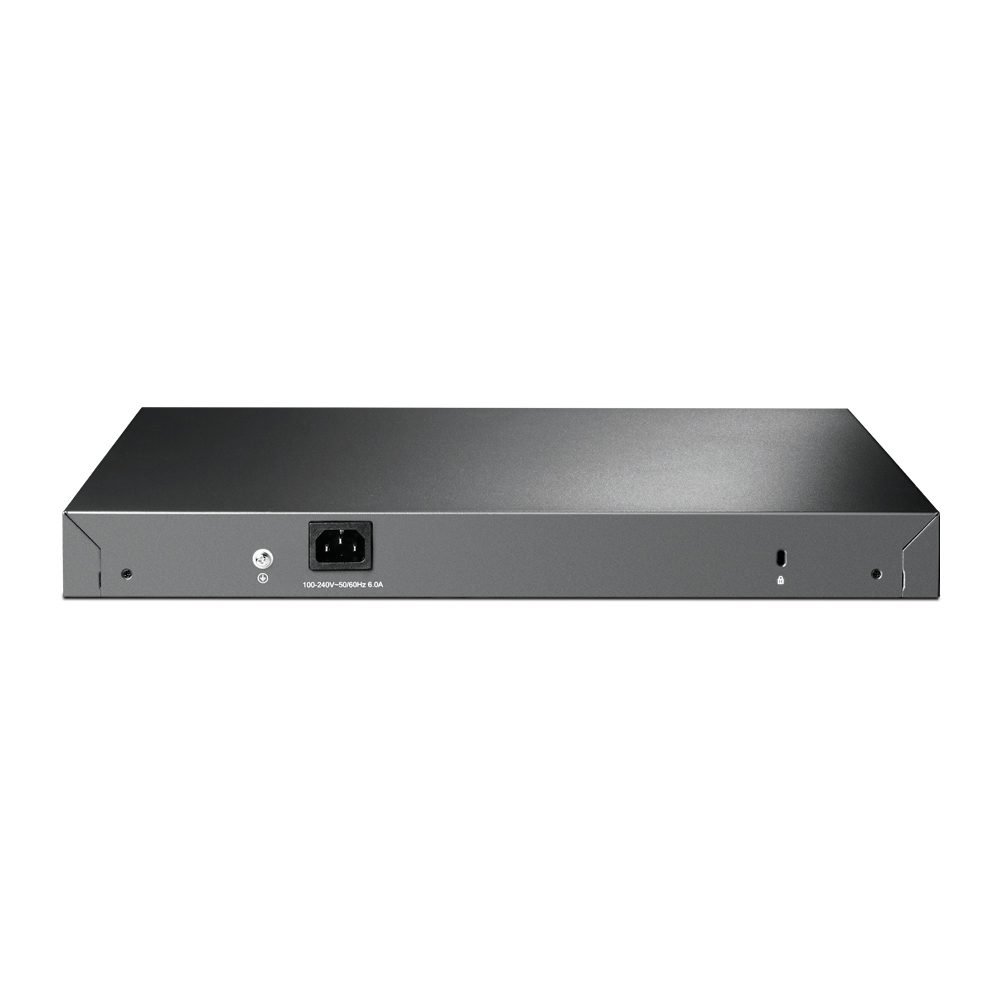

Power Supply100–240V AC, 50/60Hz
PERFORMANCE
Forwarding ModeStore-and-Forward
LatencyLow latency switching
L2 FEATURES
VLAN• 4K VLANs
• 802.1Q Tagged VLAN
• MAC VLAN / Protocol VLAN
Spanning Tree• STP / RSTP / MSTP
Link AggregationLACP (802.3ad)
MulticastIGMP Snooping v1/v2/v3
Port MirroringYes
L3 FEATURES
Static RoutingYes
IP RoutingInter-VLAN Routing
QoS FEATURES
QoS• 8 Priority Queues
• 802.1p / DSCP Priority
• Bandwidth Control
SECURITY
Access Control• 802.1X Authentication
• Port Security
• IP/MAC Binding
Protection• DoS Defense
• Storm Control
• DHCP Snooping
MANAGEMENT
Management Type• Web GUI (HTTP/HTTPS)
• CLI (Telnet / SSH)
• SNMP v1/v2c/v3
Omada Support• Omada SDN Controller
• Cloud Management
• App Management
Monitoring• Port Monitoring
• Traffic Statistics
• System Logs
OTHERS
CertificationCE, FCC, RoHS
Operating Temperature0°C to 50°C
Storage Temperature-40°C to 70°C
Humidity10%–90% non-condensing
