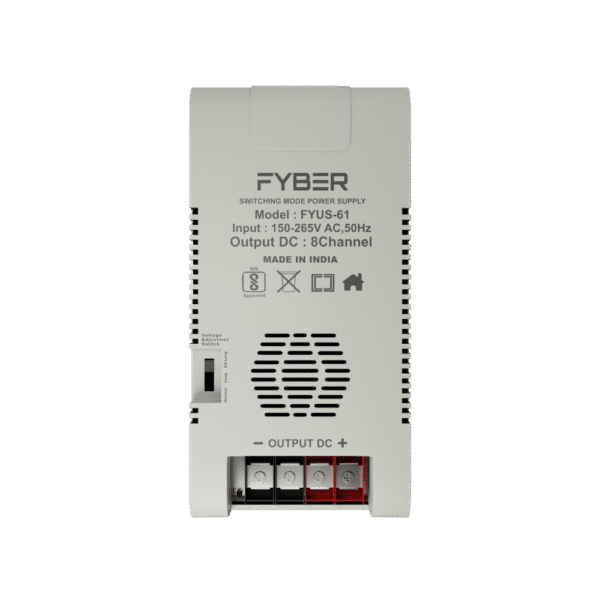

FYUS-61

FYUS-61 (Unite Series Power Supply) Comes with Block Terminal. It delivers 8A current (Max) via output terminal.

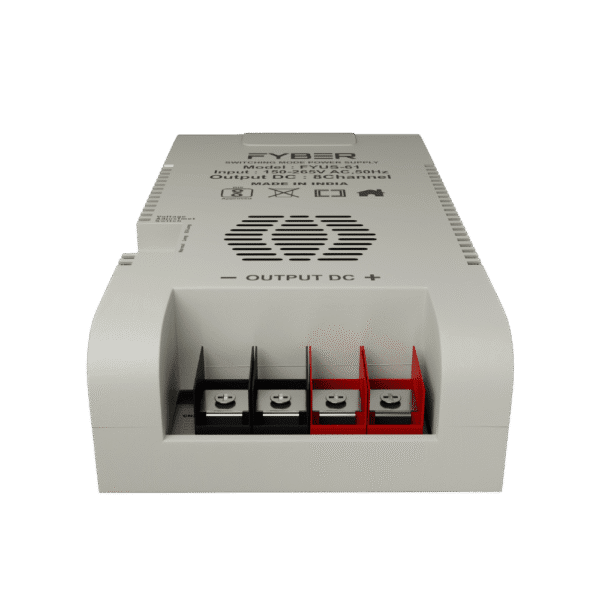

8 Channel Block Terminal Output.
Voltage Adjustment Switch.
Led indicator to shows the functional status.
Made from High grade ABS plastic
Overload, Overvoltage, Over Current, Short Circuit, and Over Temperature Protection.
Unique and attractive with Ventilation for heat dissipation.
BIS Certified.
With AC Input Cable.

Description

Feature	Specification
AC Input Voltage	150~265VAC
DC Output voltage	12~15VDC
Rated Power	120W
Ripple & Noise (max.)	120mV(max)
Voltage Adj. Range	12~15V
Device	Primary-Side Regulation
Device(frequency)	132KHz
VDS Voltage	575V(max)
Line Regulations	±1%
Load Regulations	±5%
SCP	Output short-circuit protection
OPP, OCP	Output overload/over-current protection
OVP	Output overvoltage protection, auto-restart or latching
line UV	Line brown-in/out protection
OV	Line overvoltage shutdown extends line surge withstand
OTP	Accurate thermal shutdown, hysteretic or latching
Efficiency (Typ.)	83%
Frequency Range	47~63HZ
Storage Temperature	0~50°C
