Media Converter(10/100 Base-Tx/Rx)

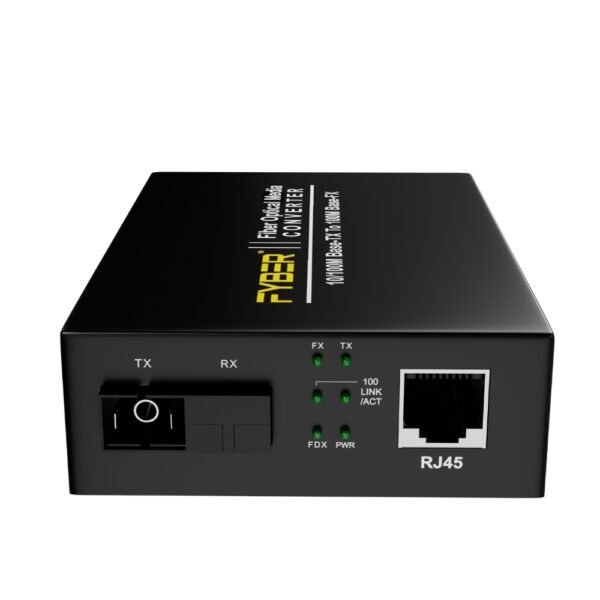

This FYMC-FE11(Media Converter) provide you a cost-effective, strong anti-interference ability and stable data transmission solution for network extensions. An RJ45 ports and a single-fiber SC optical port, to achieve optical signal conversion between 10/100base TX twisted pair, (Ethernet )and 100base FX (fiber optic). single mode SC fiber media converter set, up to 20KM.

  • Standard: IEEE802.3,IEEE802.3u,10/100Base-TX,100Base-FX
  • Flow control: IEEE8.2.3x port flow control and backpressure control
  • Transmission speed: 10M/100M auto-negotiation
  • Transmission mode: Full-duplex and semi duplex (auto-negotiation)
Category:

Description

FeatureSpecifications
StandardIEEE802.3, IEEE802.3u, 10/100Base-TX, 100Base-FX
Flow controlIEEE 802.3x port flow control and backpressure control
Transmission speed10M/100M Auto-negotiation
Transmission modeFull-duplex and semi duplex (auto-negotiation)
Conversion modeMedia conversion, storage transmission, direct transmission
MAC address1K
Buffer space288KB
Packet lengthStorage transmission: 2046Bytes, straight-through, infinite
MTBF100,000 hours
Power supplyAC100~265V 50/60Hz / DC5V 1A
Power dissipation< 2.5W
Interface1 Ethernet port: RJ45, Fiber port: SC/FC
Twisted-pairCat.5, Cat.6, direct wire and cross wire
Single mode fiber8/125, 8.3/125, 9/125um
Wavelength850nm / 1310nm / 1550nm
Single fiber Single Mode20Km (40/60/80Km) Optional (Transmission Distance)
Cat5/Cat-6 twisted-pair100m (Transmission Distance)
Operating temperature-10~60°C
Storage temperature-40~70°C
Humidity5%~90% (no condensation)
